Wholesale Bevel Gears

Established in 1988, Feida Machinery has a mature production system and produces bevel gears in its 45,000 m² facility in Jinjiang, China. The gears feature change of transmission direction, high transmission efficiency, compact structure, and wide range of gear ratios. They are widely used in applications, including automotive drive axles, industrial gearboxes, machine tools, aerospace and marine equipment, robotics and automation equipment, and agricultural and construction machinery.

Basic Structure

Gear Teeth: The teeth of the driving gear push the teeth of the driven gear, transmitting power from one shaft to another.
Pitch Cone: It is an imaginary conical surface used to define the gear's geometry and meshing relationship.
Hub and Bore: The hub connects the gear to the transmission shaft. The bore uses a key, spline, or another connection method to ensure reliable power transmission.
Tooth Flanks and Tooth Back: The tooth flanks are the working surfaces where the gear teeth contact each other and transmit loads. The tooth back refers to the non-working side of the tooth. The accuracy of the tooth flanks directly affects transmission performance.

Main Types

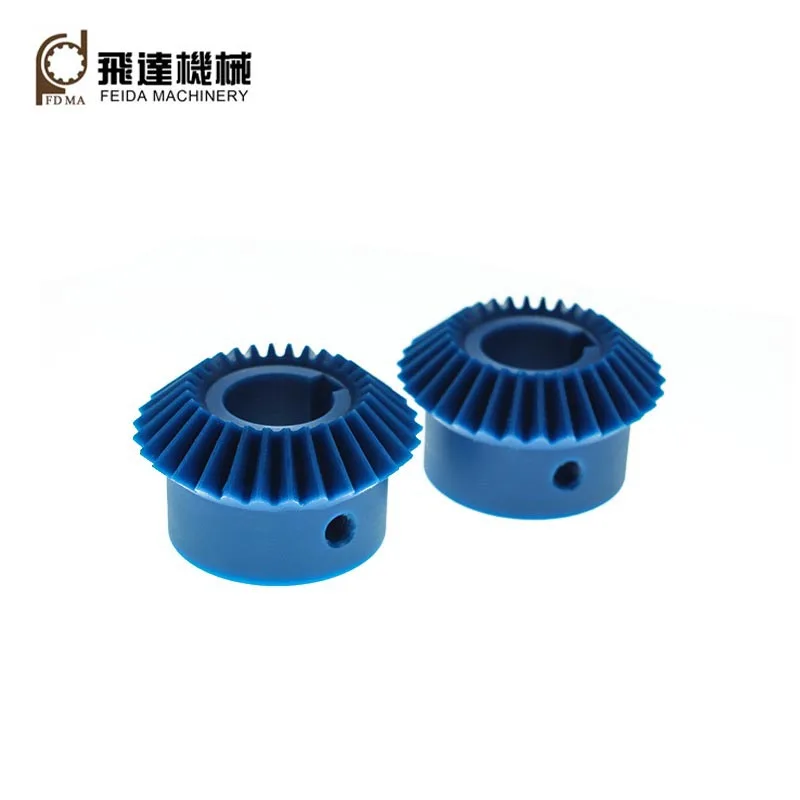

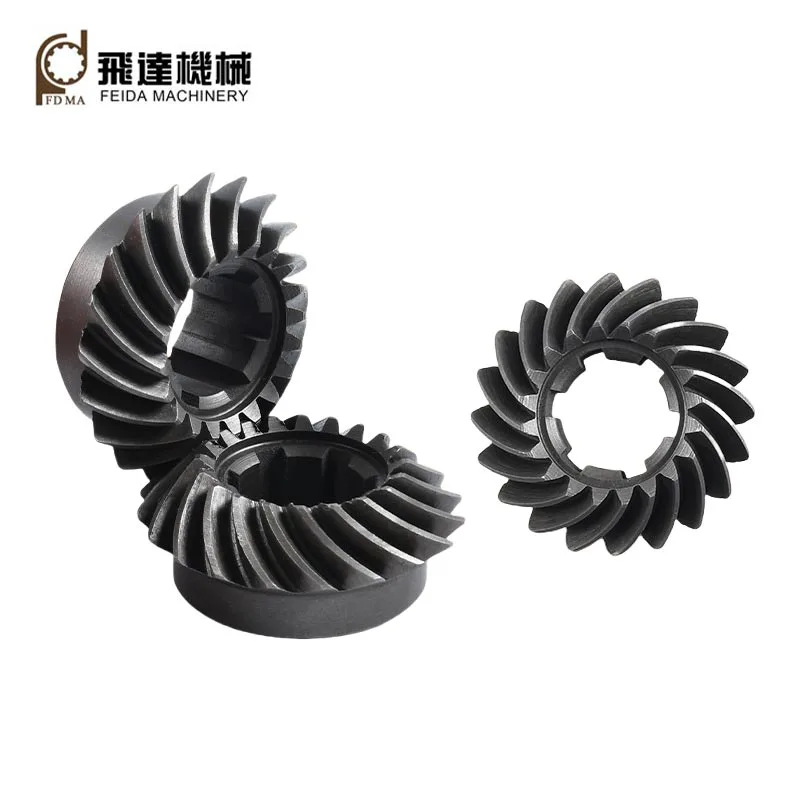

Feida bevel gears can be classified into several types according to tooth shape, manufacturing method, and meshing characteristics, including Straight, Spiral, and Zerol bevel gears.

Manufacturing Processes

The maufacturing steps:

Raw Material Selection → Forging → Turning → Gear Milling → Heat Treatment → Gear Grinding → Inspection → Packaging

Quality Control

Feida has strict quality control throughout the entire production process. Inspection includes four stages:

● Incoming material inspection
● In-process monitoring
● Finished product testing
● Pre-shipment inspection

Differences Between Bevel Gears and Spur Gears

Frequently Asked Questions

Are you a factory or a trading company?

Feida is a manufacturer, which has been producing bevel gears in its own facility since 1988.

Can you support customization service?

Yes. We can customize bevel gears according to customer drawings, samples, or technical specifications. Common customization options include tooth count, module, pressure angle, shaft angle, material, heat treatment, accuracy, tooth surface modifications, bore dimensions, and mounting structure. Before customization, it is recommended to confirm the application, operating conditions, and relevant technical standards.

What do I need to provide for purchasing?

For non-standard or customized products, it is recommended to provide 2D/3D drawings, samples, or complete technical specifications. Drawings help confirm tooth geometry, dimensions, tolerances, mounting features, and technical requirements, reducing the risk of miscommunication.

What materials do you commonly use?

Our common materials include alloy steel, carbon steel, stainless steel, aluminum alloy, bronze, brass, and engineering plastics.
