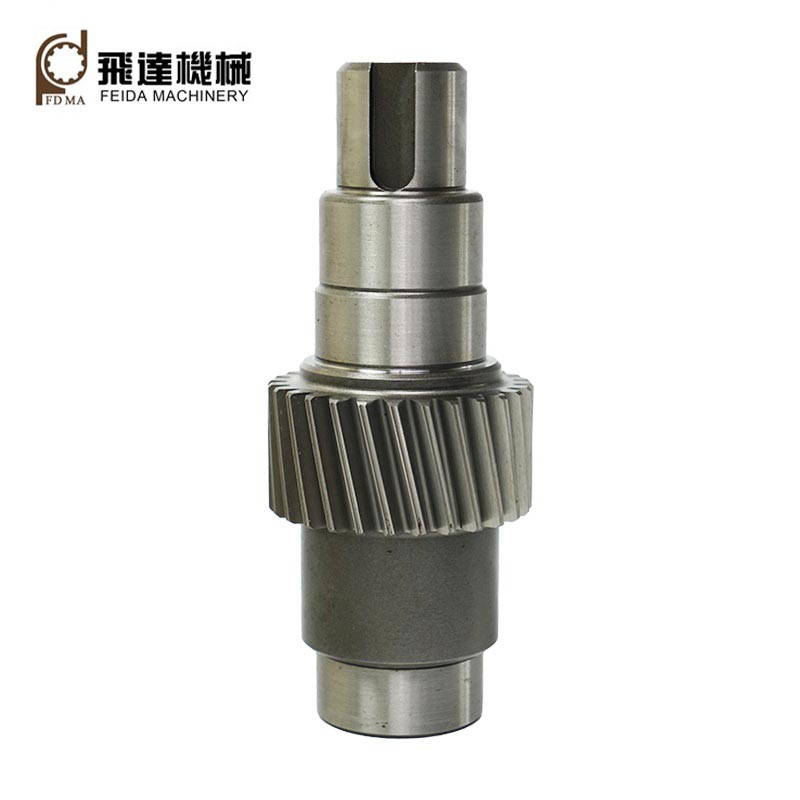

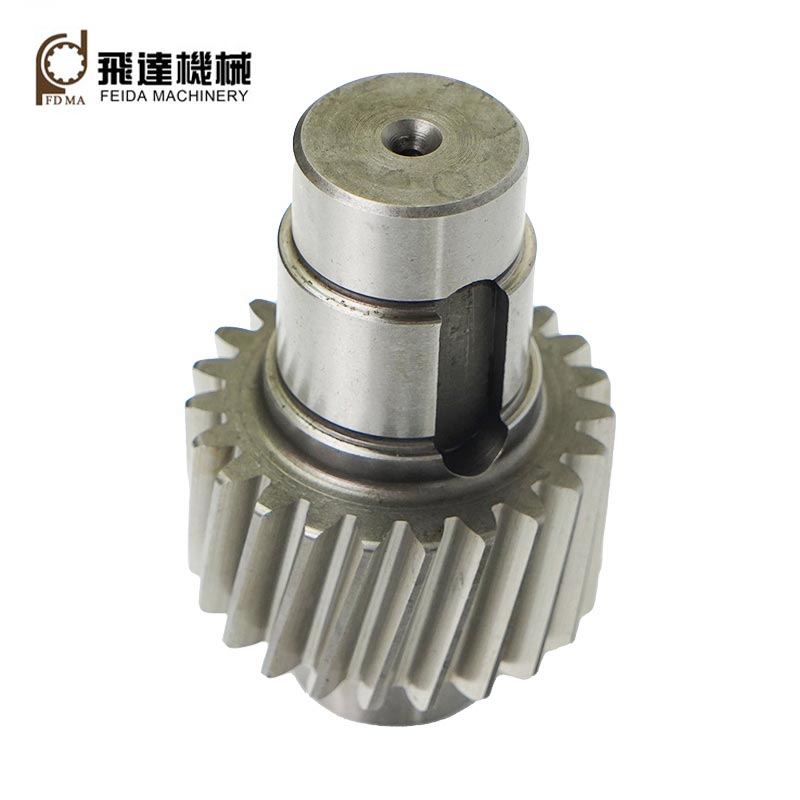

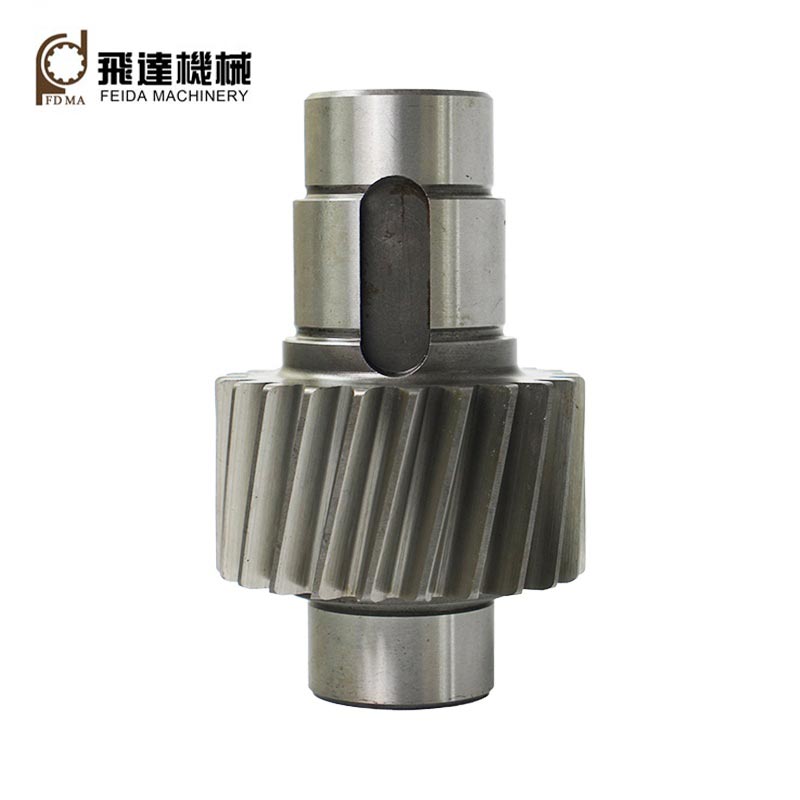

Helical Gear Shafts

Feida helical gear shafts are mechanical components that integrates the functions of a shaft and a helical gear.Usually,the helical gear teeth are machined directly onto the shaft,which allows the component to serve as a shaft support and transmit power and motion through gear meshing.

The component has a helical tooth design.During operation, the teeth gradually enter and leave the meshing zone rather than engaging across the entire tooth width simultaneously,which helps reduce impact and vibration during transmission,resulting in smoother operation, higher load-bearing capacity , and suitability for high-speed operation.

Technical Specifications

Normal Module (mn): Determines the basic gear size and affects its load-carrying capacity.

Number of Teeth (z): Determines the basic transmission ratio of the gear.

Helix Angle(β): It is one of the most important characteristic parameters of a helical gear.

Normal Pressure Angle(an): The commonly used standard value is 20°.

Pitch Diameter(d): Represents the basic dimensional size of the gear.

Face Width (b): Affects the load-carrying capacity of the gear.

Shaft Diameter(Ds): Determines the load-carrying capacity of the shaft itself.

Rotational Speed (n) and Transmitted Power (P): Used for strength calculations and dimensional design.

Basic Structure and Working Principle

Feida helical gear shaft consists of several sections, including shaft journals, the gear section, shoulders, keyways or splines, chamfers, and other positioning or connection features.

For working principle,This component normally operates together with another helical gear to form a helical cylindrical gear transmission pair.When the driving component rotates, power is transmitted to the driven gear through the meshing of the gear teeth.

How to choose raw materials?

Raw materials need to be matched according to actual usage requirements becuase different customers have different application environments.The common materials include:

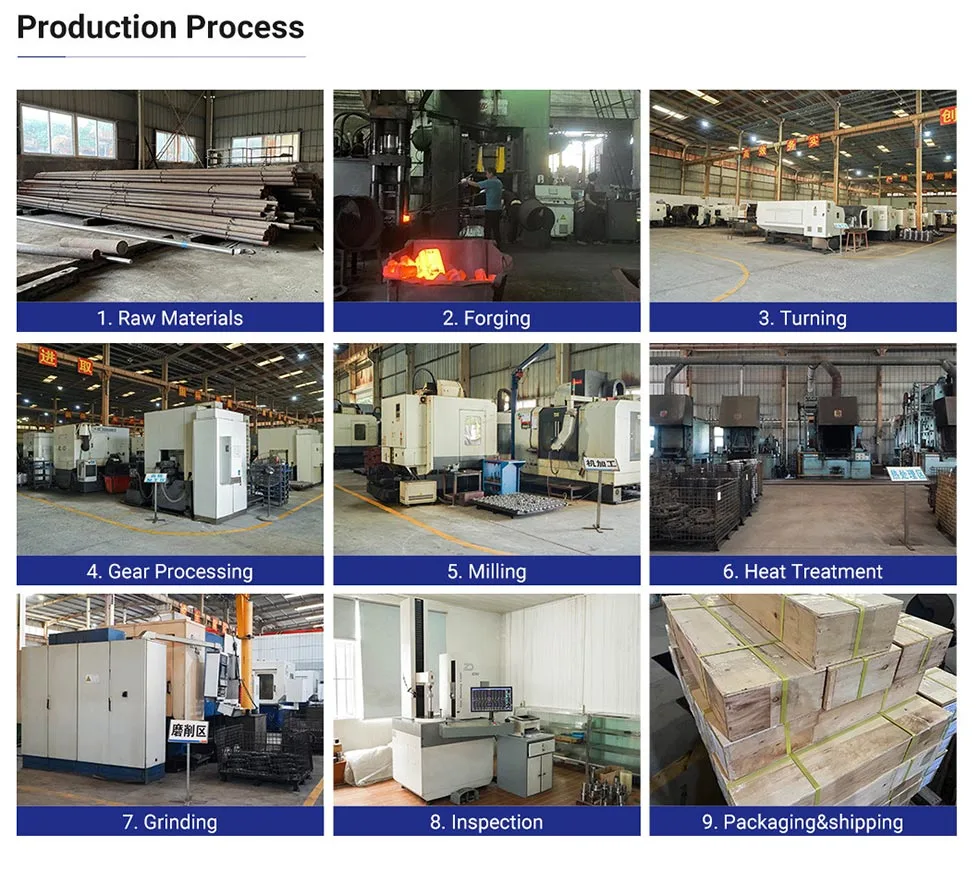

Manufacturing Process

Feida Machinery is certified to ISO 9001 and provides customized production according to different product requirements.The manufacturing process includes:

1.Raw Material Preparation

2.Forging

3.Turning

4.Gearing hobbing

5.Heat treatment

6.Gear grinding/grinding

7.Inspection

8.Packaging

Packaging

Each small gear shaft is packed individually in a plastic bag, and then placed in a in 5-ply export corrugated cartons.large gear shafts are wrapped in bubble bags and then placed into a wooden cases. For pallet orders, wooden supports and edge protectors are used. Loading photos are provided before shipment so customers can verify packing and container loading.

Application

Automotive transmissions and gearboxes

Used to transfer power and change speed and torque.

Industrial gear reducers

Used between motors and driven equipment to reduce speed and increase torque.

Machine tools

Commonly used in spindle boxes and feed mechanisms.

Construction and engineering machinery

Such as cranes, conveyors, and excavators.

Household appliances and small machinery

Used in certain washing machines, compressors, and other transmission mechanisms.

Marine transmission systems

Used to transmit power between engines and transmission equipment.

FAQ

1.What is the precision grade of your gears and shafts respectively?

The precision of gears is ISO/DIN grade 5 to 10, and that of shafts is grade 6 to 10.

2.What is the module of your gears and shafts respectively?

The module range of gears is M0.5 to M20,and that of shafts is M0.5 to M5.

3.When should gear shafts be preferred?

Gear shaft solutions are usually preferred under working conditions with compact space, high transmission precision requirements, high operation stability requirements, and strict control of noise and vibration.
