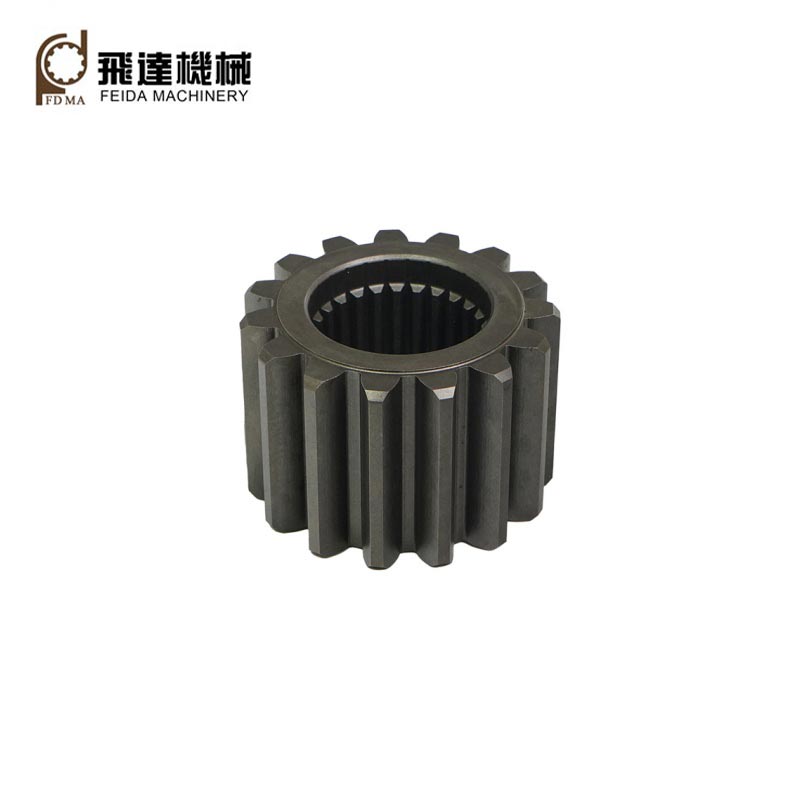

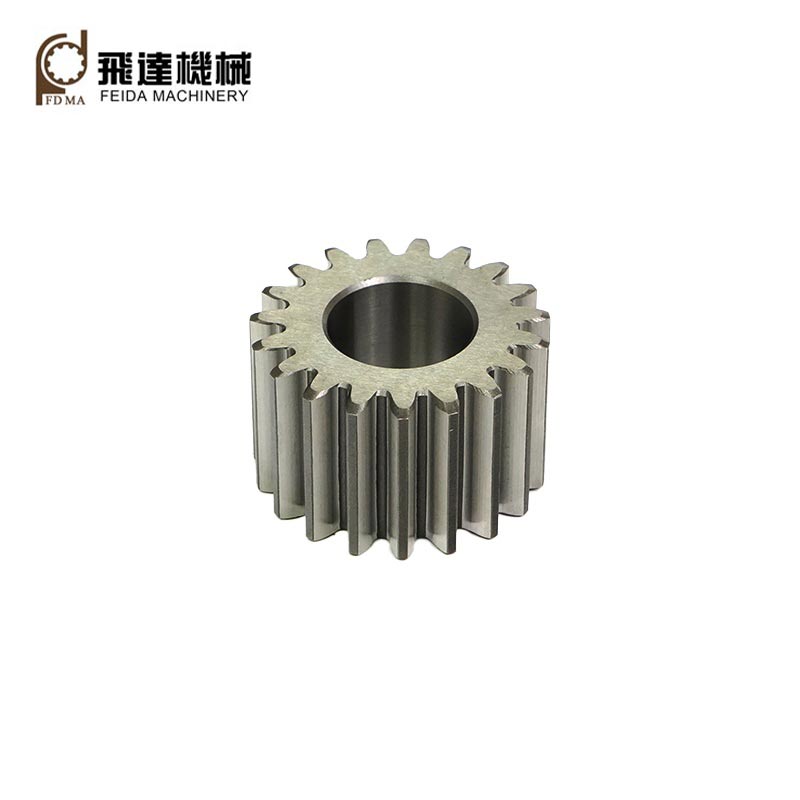

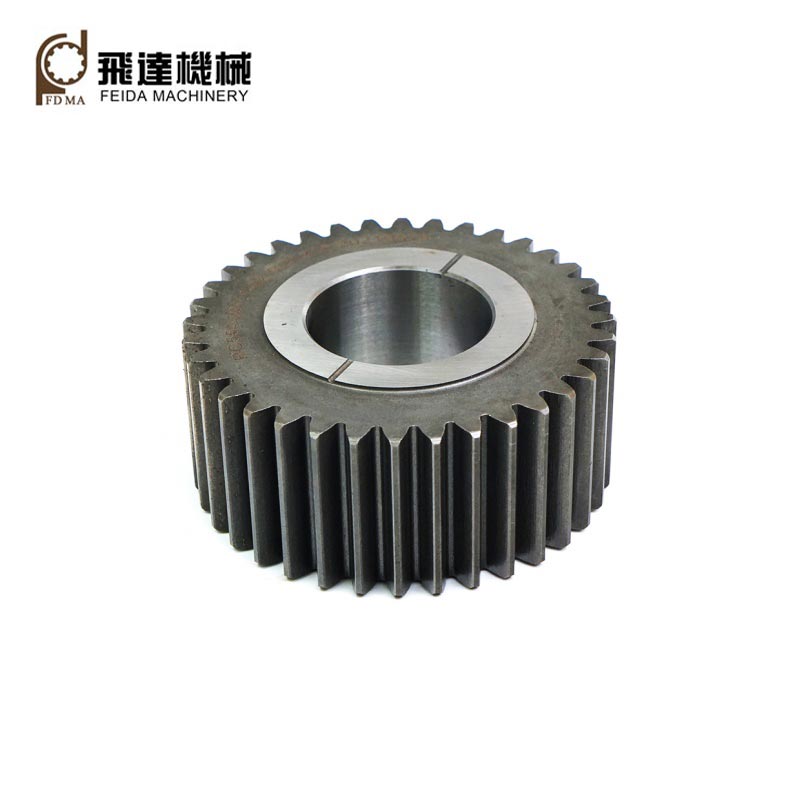

Metal Spur Gears

As one of the most basic types of cylindrical gears,Feida's high quality metal spur gears have straight tooth and are designed to transmit motion and power between parallel shafts.

Due to the simple straight teeth design ,They have characteristics of high transmission efficiency( up to 98% 99%),low cost,easy manufacturing and no axial force.

Product Parameters

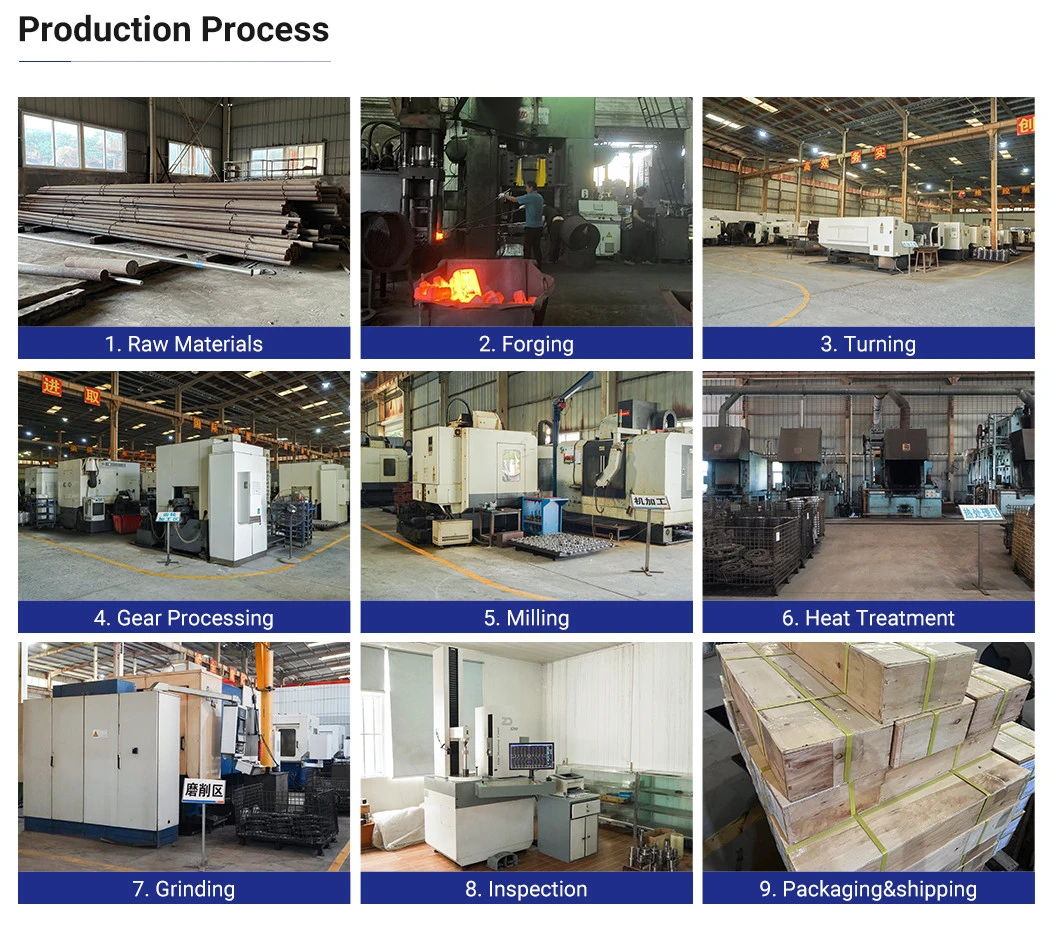

Manufacturing Process

Jinjiang Feida Machinery Co., Ltd. operates under an ISO 9001:2015 quality management system.Our production process of metal spur gears includes:

1.Raw Material Preparation

Is from original factory and has material certification.

2.Blank Preparation

The two commonly used processes are as follows:

Forging: Is a processing method that uses forging machinery to apply pressure to metal billets, causing them to undergo plastic deformation , thereby obtaining forgings with certain mechanical properties, shapes and sizes.Hot or cold forging improves material density and strength.Process steps include blanking, heating, die forging or free forging, trimming, punching,etc.

Direct cutting from bar stock: It involves cutting directly from round steel, which eliminates the need for molds but results in low material utilization.Suitable for small-batch production or applications with low precision requirements.

3.Gear Blank Machining

The core operation is turning, which finishes the bore, end faces, and outer diameter. For high-precision gears, grinding of the reference surfaces is also required.

4.Tooth Profile Machining

Hobbing: Uses a hob for high-efficiency machining, achieving accuracy grades of ISO/DIN 5-10, and is suitable for batch production of spur and helical gears.

Shaping: A machining process performed with a shaper cutter, suitable for internal gears and other special structural forms.

5.Heat Treatment and Surface Treatment

Processes such as carburizing, quenching, and tempering are applied to increase tooth surface hardness and wear resistance.

6.Finishing

Finishing: After heat treatment, gear grinding is used to eliminate distortion and ensure high accuracy; shaving may be applied before heat treatment as a fine-finishing operation to improve surface finish.

Quality Control

Feida has passed ISO:2015 quality management system certification.We implement a multi-stage Quality Control (QC) system:

Initial Article Inspection (FAI): Full dimensional verification before mass production starts.

In-Process Quality Control (IPQC): Sampling checks every 2–3 hours during the machining process.

100% Final Inspection: Every part undergoes a final check for dimensions and surface finish before packaging.

Applications

Automotive & Transportation

Our metal spur gears are widely used in gearboxes,reducer,axle,differentials,and other core drivetrains,as well as in auxiliary components like engines and wipers. Also common in motorcycles, railway locomotives, etc.

Industrial Machinery

Gearboxes for various machine tools are a typical application; they are also used in reducers, conveyor systems, construction machinery, packaging machinery, mining/cement machinery, and textile machinery, among others.

Automation & Robotics

Applied in joint and drivetrain systems for industrial robots, AGVs/AMRs, as well as in semiconductor manufacturing equipment and various automation devices.

Precision Instruments & Equipment

Found in medical devices, optical instruments, clocks & watches, and other equipment requiring accurate power transmission.

Home Appliances & Consumer Goods

Common in power tools, household appliances, and toys.

About after-sales services

If you find any problems after receiving the product, you can provide feedback within one month via phone call, video conference, or email ,and our team will provide you with solutions as soon as possible.

Certifications

Since its establishment in 1988, Feida has been developing at a steady speed.Until now we has cooperated with many well-known domestic and oversea companies such as Hitachi Energy, Zoomlion, XCMG, FAW, CATL and XGMA, and has received the supplier Excellence Award for XGMA from 2009 to 2013 and 2018.

Packaging and Shipping

We have been provding precision-engineered protection for our products,ensuring your critical components arrive flawless every time.The common packaging methods include plastic boxes,outer mesh bags,rust- resistant paper,bubble bags,cartons,wooden boxes.

Feida offers various transportation modes according to clients' requests, such as sea, air, land, and express.

Why choose Feida?

About us: Feida is a high-tech enterprise that has been deeply focusing on the field of industrial transmission since 1988,integrating R&D, production, sales, and service to provide comprehensive solutions for our global clients.

About equipment: At present,we have 162 pieces of advanced processing equipment ,one piece of heat treatment equipment and 15 pieces of testing equipment.

About quality: We have an effective product quality management system,and it ensures that our products are highly regarded and well received by customers at home and abroad.

About services: We provide not only pre-sales consultation but also after-sales service,ensuring that customers feel at ease when making a purchase.
