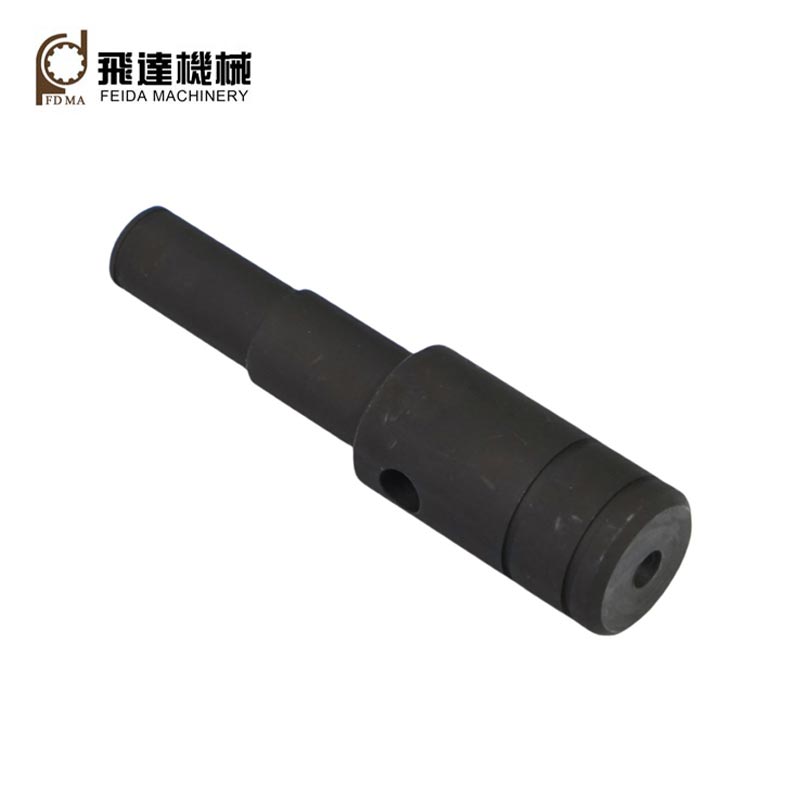

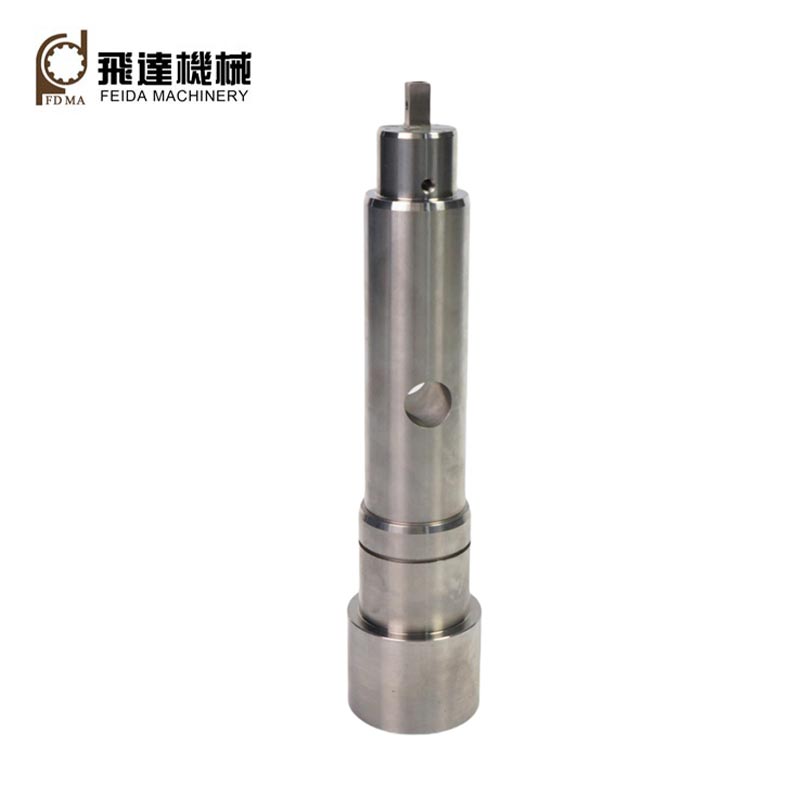

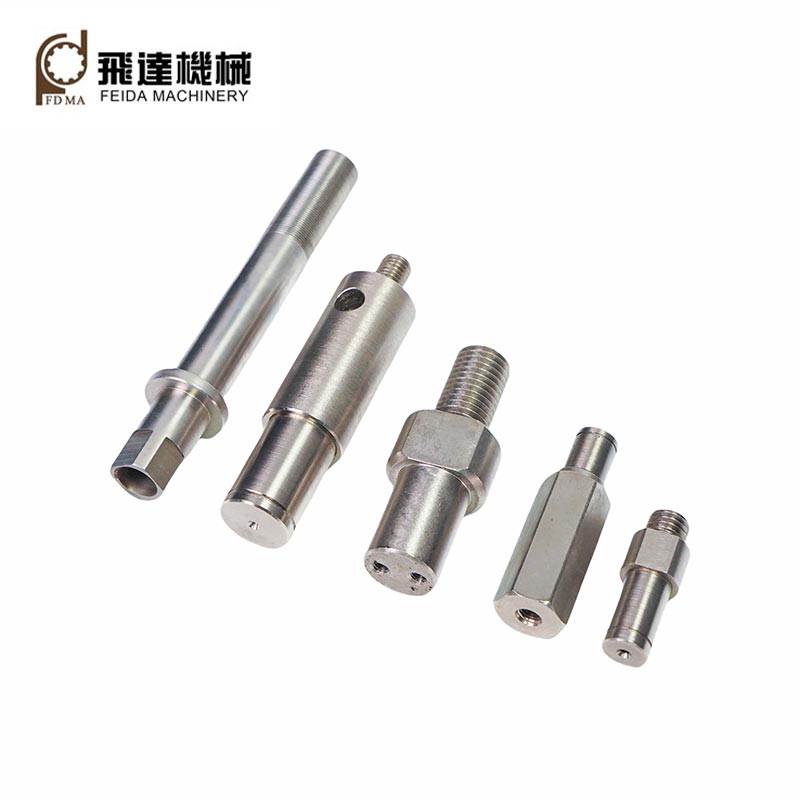

Stepped Shafts

As a very common type of shaft component in mechanical equipment,Feida stepped shafts are solid or hollow shafts whose diameter changes along its axial direction, forming several shaft sections with different diameters. The changes in diameter between adjacent sections create shoulders or collars, resulting in a stepped structure.The shafts perform several important functions in mechanical equipment.

. Supporting Function
. Torque Transmission
. Bending Moment Resistance
. Axial Positioning

Main Structural

Journals: Is a section of the shaft that mates with a bearing.

Shaft Ends: Is the section used for mounting gears, pulleys, couplings, sprockets, and other transmission components.

Shaft Body: Refers to the intermediate portion connecting different journals and shaft ends.

Shaft Shoulders and Collars: A shaft shoulder or collar is formed where the diameter changes between adjacent shaft sections.

Keyways: Is usually machined into the shaft end for installing a parallel key.

Relief Grooves: Used to provide clearance for turning tools, grinding wheels, and other machining operations.

Chamfers: Are commonly provided at the ends of shafts and at certain shoulder locations.

Main Characteristics

Good Positioning Performance: Is one of the most important structural advantages of a stepped shaft.

Convenient Installation of Different Components: Because different shaft sections have different diameters, different components can be mounted on the same shaft according to their respective bore sizes.

Relatively Complex Manufacturing Process: Although the stepped structure provides many functional advantages, it also makes manufacturing more complicated than that of a simple cylindrical shaft.

Production Flow & Quality Control

Feida's production is carried out under a documented quality management system based on ISO 9001:2015.The manufacturing steps:

Blank preparation → Face turning → Center-hole drilling → Rough turning → Heat treatment → Semi-finish turning → Finish turning → Keyway milling → Grinding → Deburring → Inspection

Our quality control covers raw material inspection, production control, finished product testing, and shipment management.For finished products testing,the main inspection items include:

1.Diameter of each shaft section
2.Length of each shaft section
3.Shoulder positions
4.Coaxiality
5.Radial runout
6.Cylindricity
7.Keyway dimensions
8.Thread dimensions
9.Surface roughness

Application

Feida stepped shafts are widely used in mechanical equipment.

Gearboxes

Are one of the most typical applications of stepped shafts.

Machine Tools

Transmission shafts and spindles in lathes, milling machines, grinding machines, and other machine tools adopt stepped structures.

Automobiles

Many shaft components in automobile transmissions and power-transmission systems have multiple shaft diameters and also incorporate splines and other connection structures.

Construction Machinery

Construction machinery often needs to transmit large amounts of power and torque. Therefore, its shaft components generally have high requirements for strength, fatigue resistance, and heat-treatment quality.

Company information

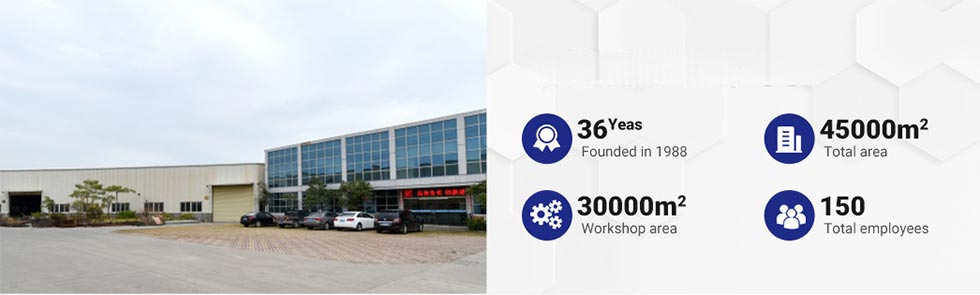

Feida Machinery is located in Jinjiang city, China, covering an area of 45,000㎡.With over 30 years of development,the factory now has 150 employees,including more than more than 20 technical staff and QC inspectors respectively.

We have a complete set of production equipment, as well as test instruments, to meet customers' diversified requirements and international standards.In addition,we are certified to the ISO9001:2015 and have strict quality control at every step in the whole production process.

Feida Machinery is willing to work with you to create brilliant tomorrow.
