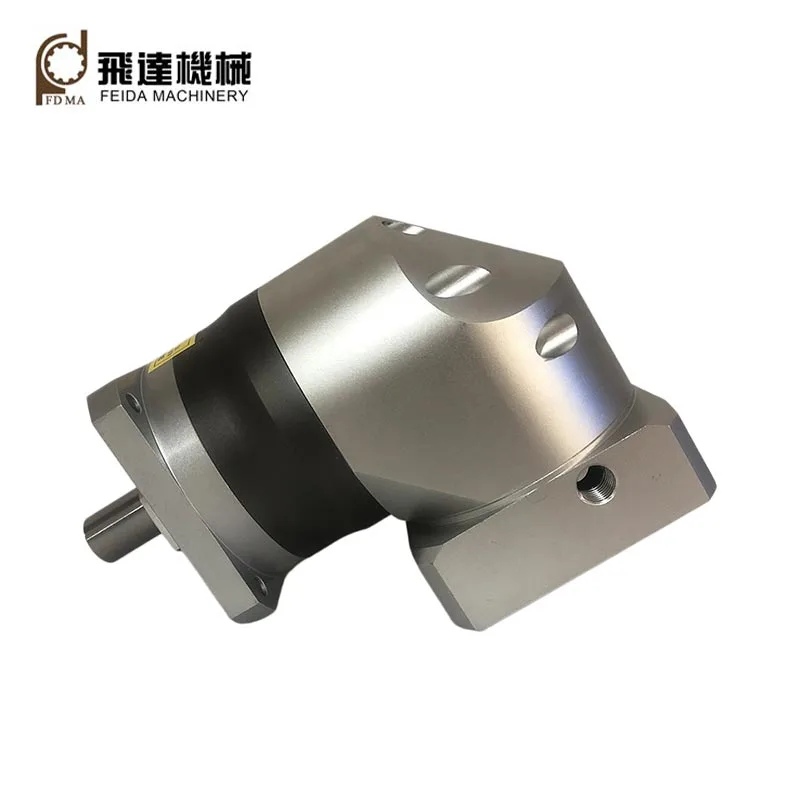

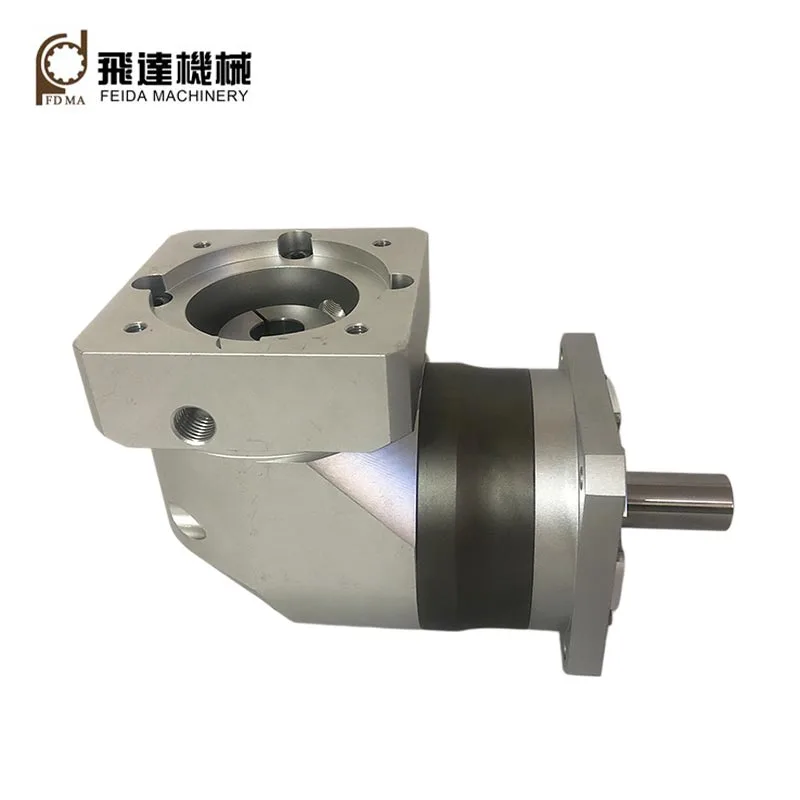

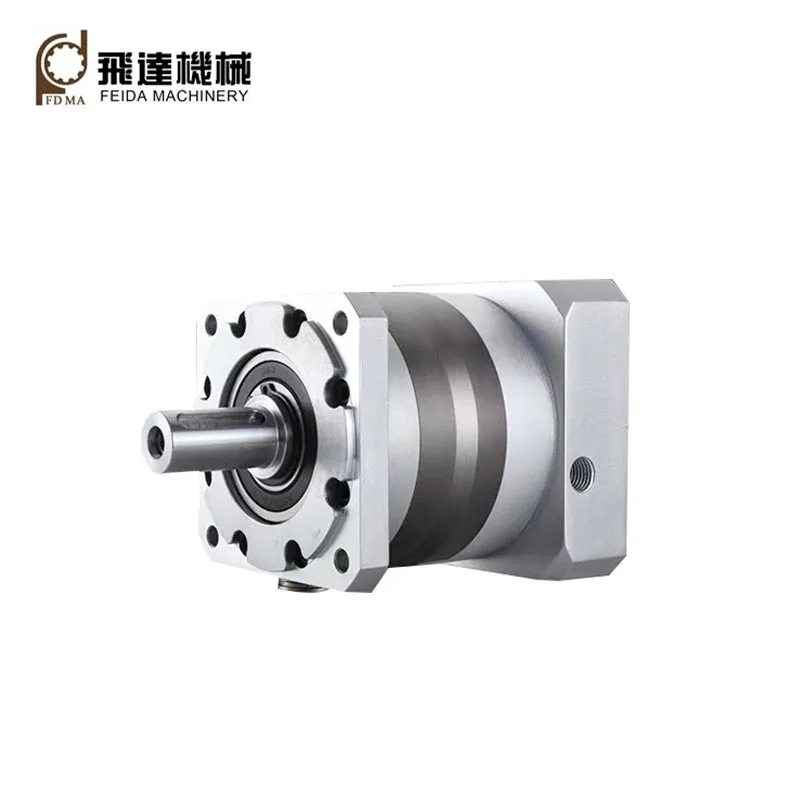

Planetary Gear Reducers

Product Overview

Feida planetary gear reducers are mechanical transmission devices that use the principle of planetary gearing to reduce rotational speed and increase output torque. This device mainly consists of a sun gear, planet gears, a ring gear, a planet carrier.Through the relative motion and meshing of these components, it achieves power transmission and speed conversion.

Working Principle

The fundamental operating principle:Speed reduction and torque multiplication through relative motion among the sun gear, planet gears, ring gear, and planet carrier

Main Features

Compact structure: Multiple planetary gears are arranged around the sun gear, which can achieve a large transmission capacity in a relatively small volume and is suitable for equipment with limited space.

High load-bearing capacity: Multiple planetary gears sharing the load can effectively reduce the force on individual gears and enhance the overall load-carrying capacity.

High transmission efficiency: Under conditions of reasonable design, good processing accuracy and adequate lubrication, planetary gear reducers usually have high transmission efficiency.

Wide range of transmission ratios: By combining single-stage or multi-stage planetary mechanisms, different reduction ratios can be achieved to meet various power transmission requirements.

Production Flow

Our production process can be summarized as follows:

Raw Materials Preparation→ Blank Manufacturing → Gear, Shaft, and Housing Machining → Heat Treatment → Finish Machining → Component Inspection → Planetary Gear Assembly → Performance Testing → Final Inspection and Packaging

Quality Control

Feida carries out strict quality control, checking after each process.Before shipment, we will use various inspection instruments, such as mechanical testing machines, material analysis spectrometers, coordinate measuring machines (CMMs), roughness testers, and hardness testers, to test finished products.

How to maintain the planetary gear reducers?

To extend the service life of the device, we need to pay more attention to its maintenance.Key maintenance points include:

● Regularly checking the lubricating oil or grease
● Monitoring operating temperature
● Monitoring changes in noise and vibration
● Inspecting sealing performance
● Avoiding prolonged overload operation
● Regularly checking installation accuracy

Application

Industrial Robot

Used in conjunction with servo motors to provide reliable power transmission for robotic arms, rotary joints and automated actuators.

New Energy Automobile

Used for functions such as power distribution, speed change, and deceleration in the electric drive system of new energy vehicles.

Engineering Machinery

Used for systems such as traveling drive, slewing drive and winch drive in xcavators, cranes, loaders and crawler equipment and other construction machinery requiring large output torque and strong impact resistance.

CNC machine tools and automated equipment

Used to help reduce motor speed, increase output torque and improve the control performance of the system in CNC rotary tables, servo drives, automatic tool changing mechanisms and precision positioning platforms.

FAQ

How do you install a planetary reducer?

Installing it consists of securing the reducer to the mounting surface, aligning the input and output shafts, and ensuring proper meshing of the gears to achieve optimal performance and efficiency in the system.

What information should we provide for customization?

The information includes type of gearbox, ratio, input and output type, input flange, mounting position and motor information,shell color,etc.

What are common types?

Common types include single-stage,multi-stage,precision,high-torque,and miniature planetary reducers.
