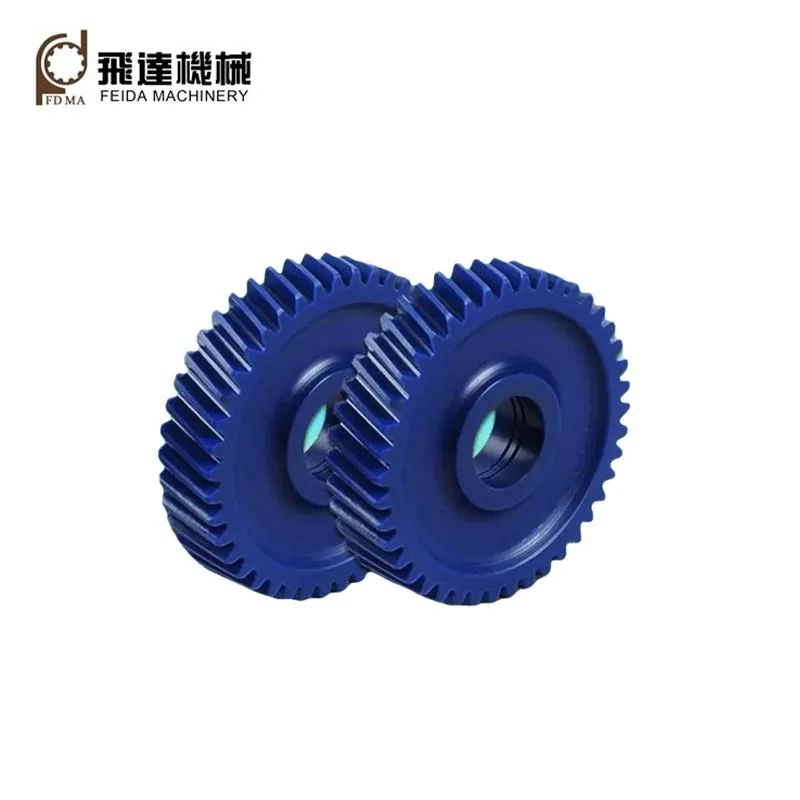

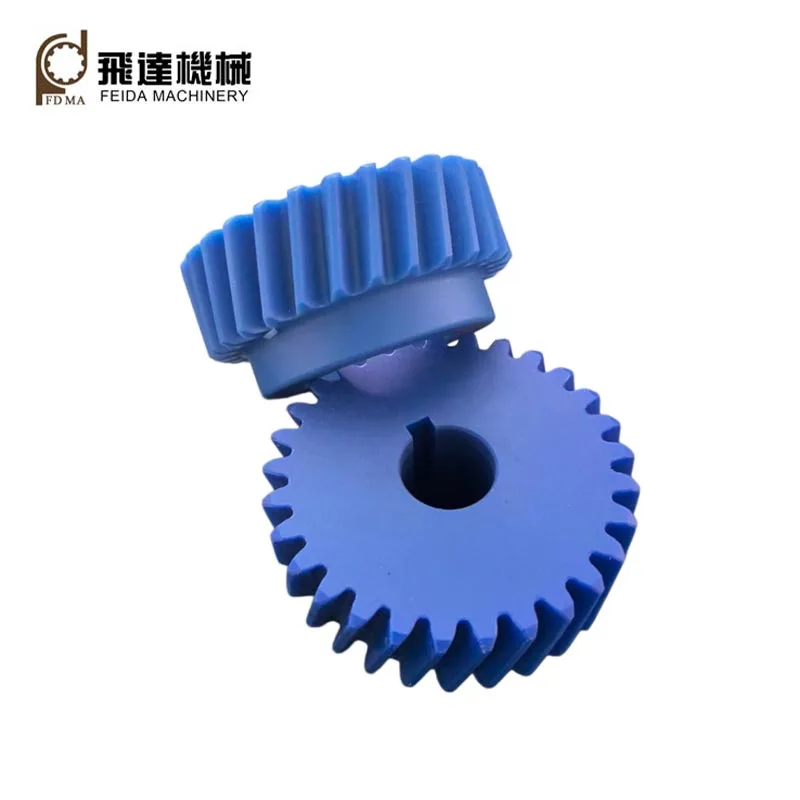

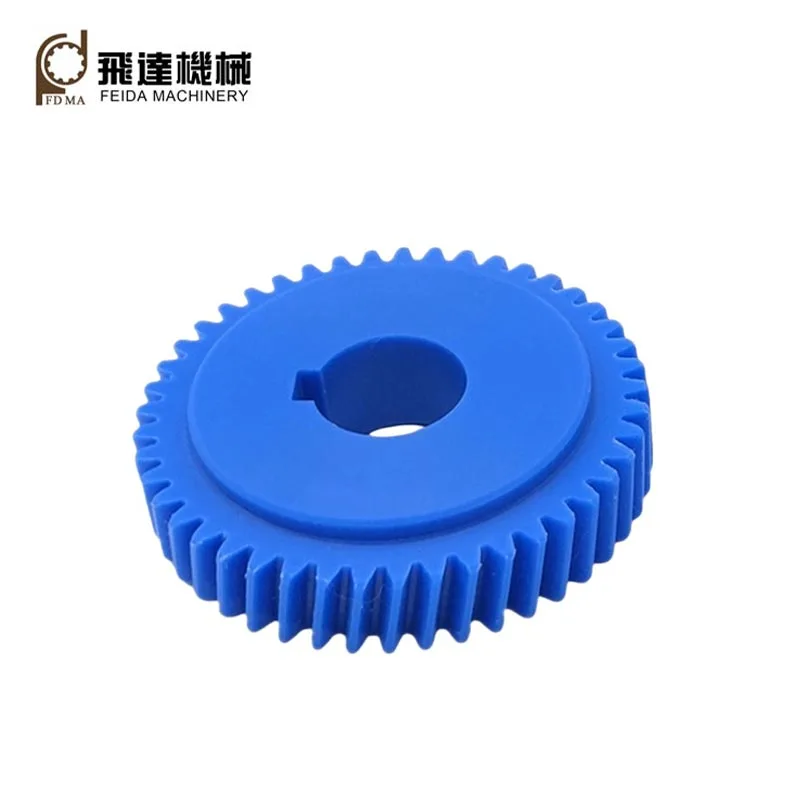

Plastic Helical Gears

Plastic helical gears made in china from Feida Machinery factory are crafted by engineering plastics,which have helical teeth and designed to transmit motion and power between parallel shafts and normally are in a set,including pinion and gear.

Product Parameters

Material advantages

Nylon: Provides good wear resistance, toughness, and impact resistance, making it suitable for gears that may experience certain levels of shock loading.

PEEK: Offers excellent high-temperature resistance, chemical resistance, and wear resistance. It can be used in high-temperature or demanding environments where conventional engineering plastics may not be suitable.

POM: Offers high hardness, rigidity, wear resistance, and good dimensional stability. It also has a relatively low coefficient of friction, making it one of the most commonly used materials for precision plastic gears.

Differences Between Plastic Helical Gears and Metal Helical Gears

Customzation

Feida plastic helical gears can be customized according to your installation dimensions, transmission parameters and usage environment. Adjustable parameters include:

.Module, number of teeth, pressure angle, and helix angle

.Outer diameter, bore diameter, keyway, and hub dimensions

.Gear width and helix direction (left-hand or right-hand)

.Material options such as POM, PA (nylon), MC nylon, and PEEK

.Color, surface finish, and dimensional accuracy

.Prototype, small-batch, or mass production

.Export cartons

If you are looking for a manufacturer, you can provide a engineer drawing or a physical sample of the gear.

Applications

Our plastic helical gears are widely used due to their smooth transmission, low noise, self-lubrication, light weight, and low cost. Key application areas include:

Automotive Industry

Used in seat adjusters, window lifts/wipers, sunroofs/door locks, headlight adjusters/rear-view mirrors, and electronic power steering (EPS). Also common in various actuators and auxiliary drives.

Home Appliance

Found in washing machines (reducers), vacuum cleaners, automatic coffee makers/juicers, massagers, and food processing equipment.

Office Automation & Electronics

Widely used in printers/copiers/fax machines, paper shredders, cameras/DVD mechanisms, scanners/timers, etc.

Medical & Robotics

Used in medical devices (e.g., insulin pumps for positioning drives) and intelligent robots.

Why choose Feida?

1.We are a factory with more than 30 years of industry experience.

2.Our production capacity is up to 15,000 tons/ year.

3.OEM &ODM services are available.

4.We have strict quality control system.

5.Excellent pre-sale,in-sale,and after-sale services are offered.
