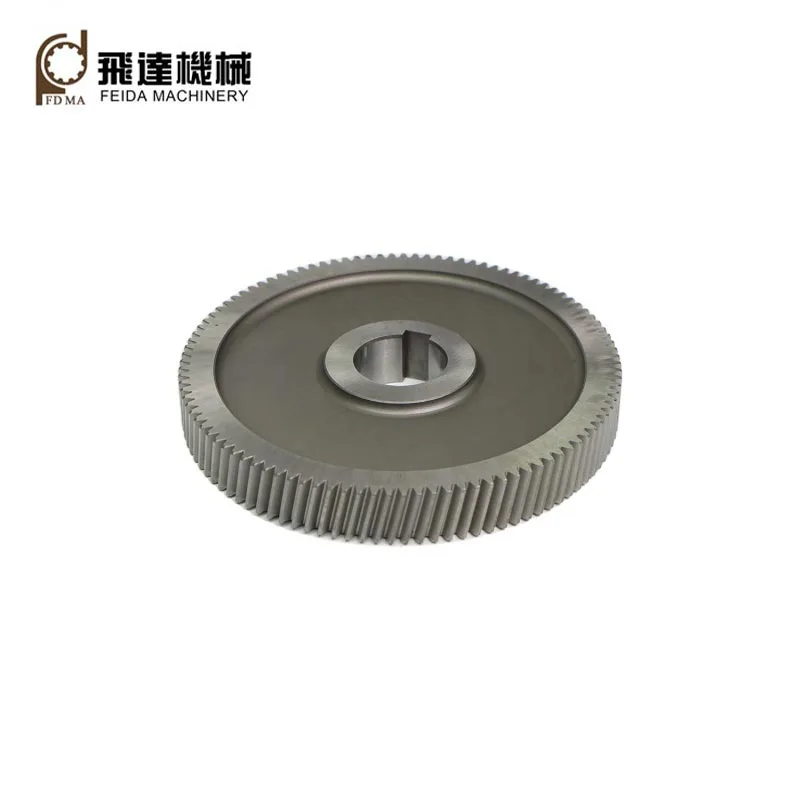

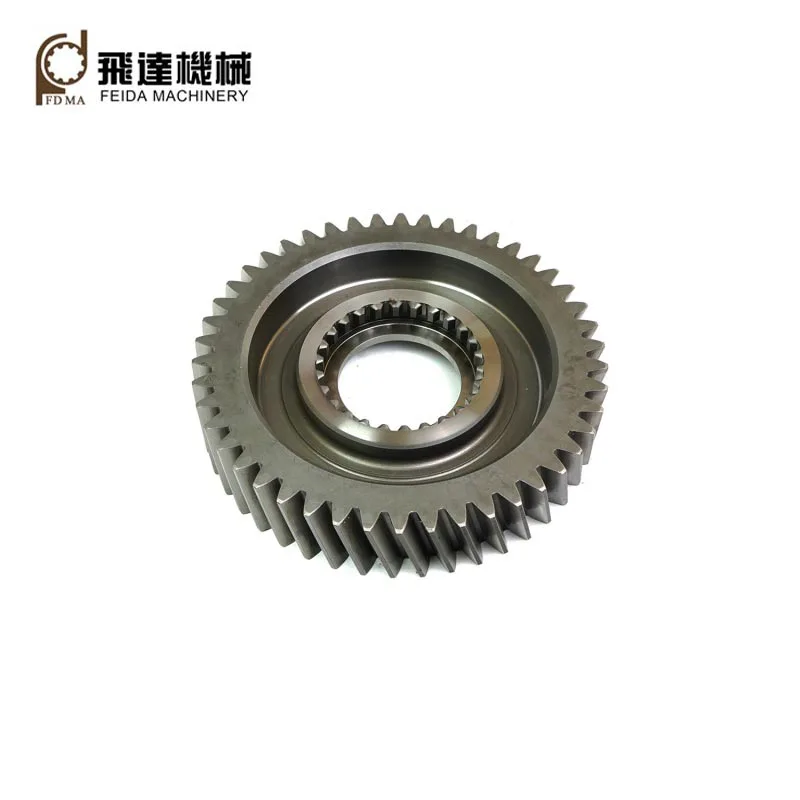

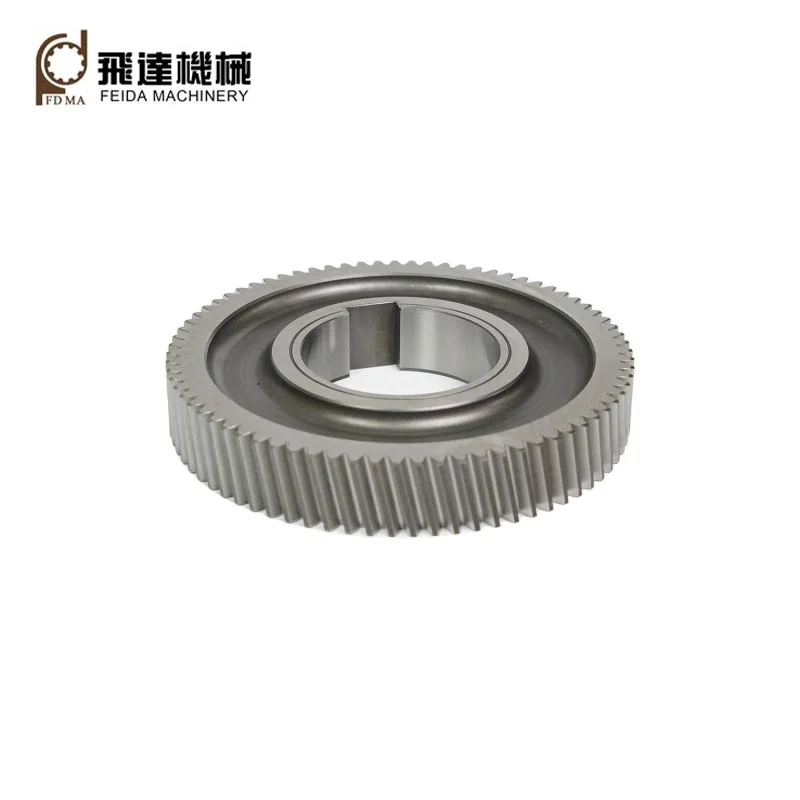

Metal Helical Gears

Metal helical gears from Feida Machinery are cylindrical gears with teeth arranged helically at a certain helix angle relative to the gear axis.They are mainly used to transmit motion and power between parallel or crossed shafts.

The teeth of the gears are at an angle to the gear's axis, resulting in a gradual engagement and disengagement of the teeth as the gears rotate. This design feature allows for smoother ,quieter operation ,high speed and higher load-bearing capacity.

Main Parameters

Module (m): Determines the size of the gear teeth and is one of the most important basic parameters.

Number of teeth (z): The total number of teeth on the gear.

Helix angle(β): The angle between the tooth line and the gear axis. This is the defining feature of a helical gear.

Pressure angle(α): Determines the direction of the force acting between the gear teeth.

Pitch diameter (d): The theoretical reference diameter of the gear.

Face width (b): The width of the gear teeth along the axial direction.

For proper meshing,two helical gears must have the same module,pressure angle,and helix angle,but opposite hands(one left-hand,one right-hand).

Materials

We can process a varity of metal materials,such as steel,brass,etc.The precision grade of our steel,brass helical gears is up to ISO/DIN 5-10 level.

Let us first take a look at the characteristics of some main metals as follows：

1.Alloy steel: Offers high strength and toughness and can achieve excellent wear resistance and fatigue performance after appropriate heat treatment

2.Carbon steel: Offers good machinability and relatively low material costs.

3.Stainless steel: Provides excellent corrosion resistance and can be used in humid or corrosive environments and in equipment where specific material or hygiene requirements apply.

4.Brass and copper: Machine smoothly and hold fine details.

Differences Between Metal helical Gears and Metal Spur Gears

Quality Control

Feida controls every manufacturing process in strict accordance with ISO9001: 2015 quality system standard.As the last quality guarantee before shipment, our high precision inspection equipment includes mechanical testing machine, material analysis spectrometer, coordinate measuring machines (CMM), roughness tester, hardness tester, etc. to make sure all the plastic internal gears 100% meet the standards and tolerances before shipment.

Applications

Automotive & Transportation

Our metal helical gears can be used for gearboxes (to counteract axial thrust), differentials (withstand shock loads), and steering systems. They handle high torque and are much quieter than spur gears, making them the mainstay in ICE and hybrid vehicles.

Heavy Industrial Machinery

Used for rolling mills, mining crushers, marine propulsion. These equipment require massive power transmission. Metal materials ensure fatigue resistance, and the helical tooth design enables multiple-tooth contact to prevent tooth breakage.

High-Precision transmission

Suitable for machine tool spindles, robot joints, wind turbine gearboxes. The high contact ratio ensures smooth, pulse-free output, essential for precision machining and grid-compliant power generation.

Certifications

Thanks to advantages in technology, management, quality and very competitive price,our products have obtained good reputation among domestic and international customers.

Packaging

We always can tailor packaging solutions for our clients to ensure that all products arrive safely.The packaging methods include:

Plastic boxes: Used for spline shafts.

Outer mesh bags and bubble bags: Prevent the products from colliding with each other during transportation.

Rust resistant paper bags: Suitable for products that require rust prevention.

Wooden boxes: Suitable for products with a relatively heavy weight.

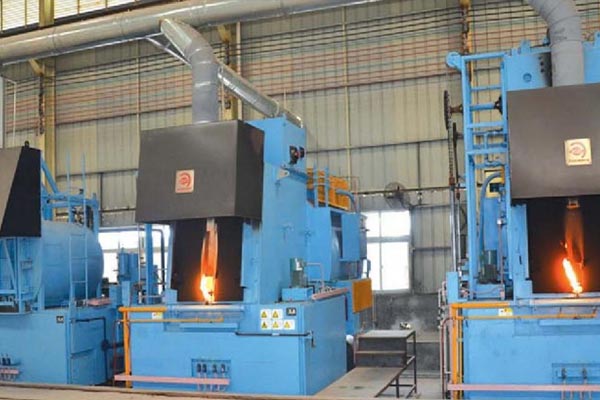

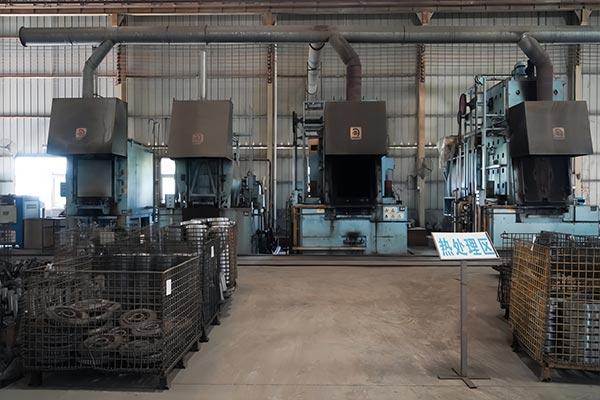

Company Strength

After years of development, Feida has grown into a large enterprise with three factories: a gear factory, a machining factory, and a sheet metal factory. It currently has 150 employees,including more than 20 20 technical staff.

About materials: Feida carefully selects high-quality materials such as steel and brass to ensure the durability and performance of our products. The use of quality materials combined with advanced production techniques results in reliable and long-lasting mechanical parts.

About customized services: Feida can design and manufacture metal helical gears in different materials, sizes, and specifications to meet the specific needs of different industries and applications.
