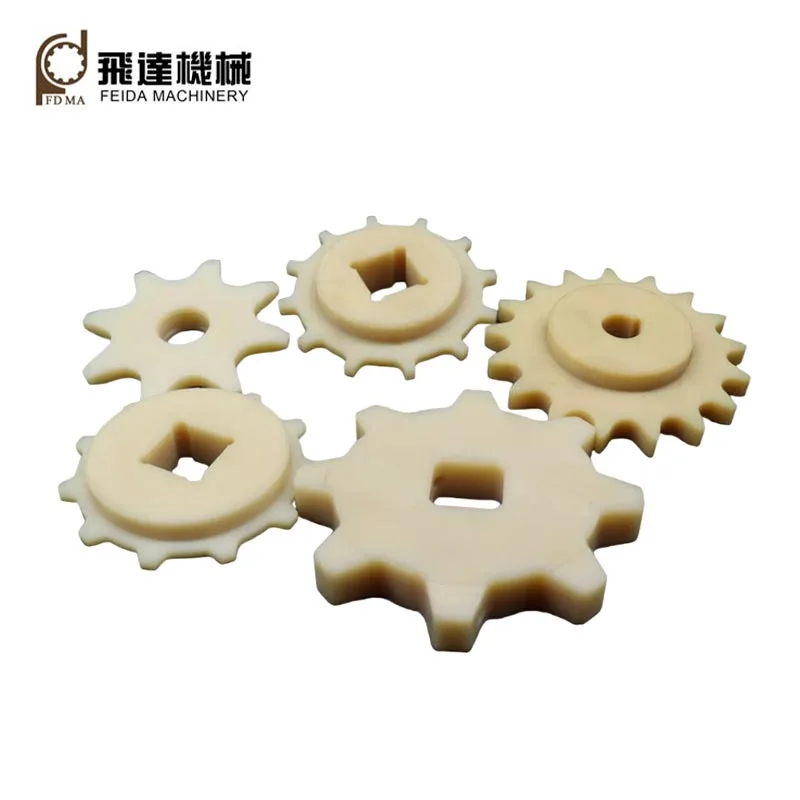

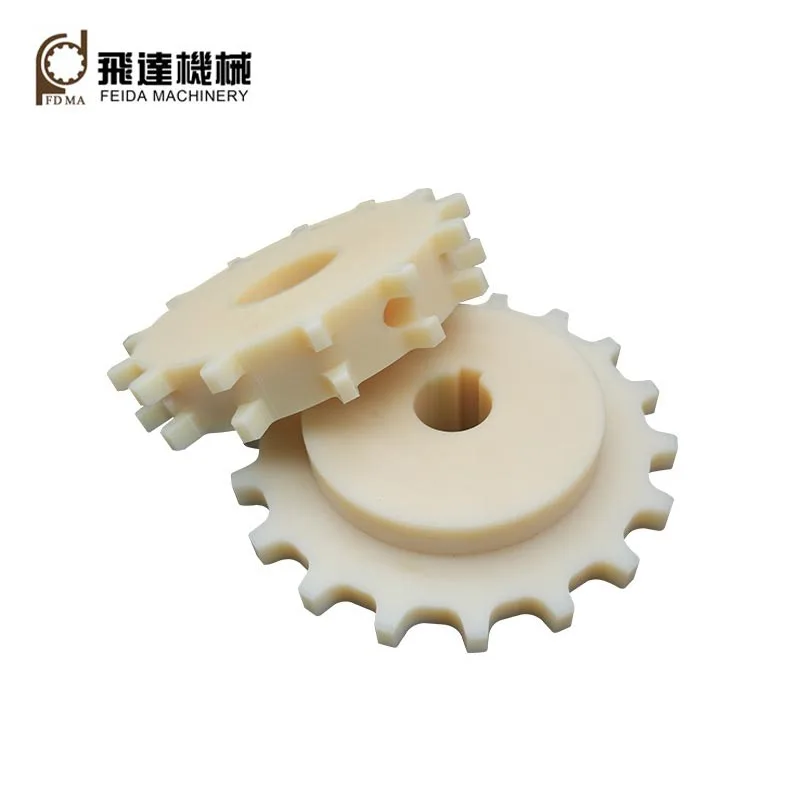

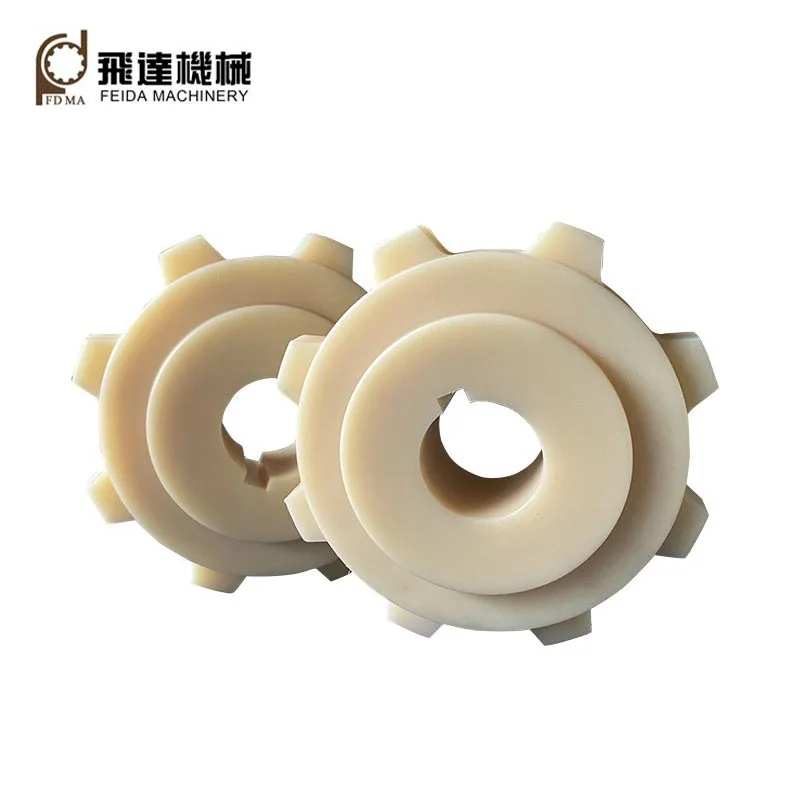

Plastic Sprocket Gears

Produced by Feida Machinery factory,plastic sprocket gears are wheels with teeth that engage with a chain to create a reliable drive system.This drive system is typically used for long-distance transmission because the length of chain can be adjusted.

Product Parameters

Chain Type: 08A, 10A, 12A, 16A, 20A, etc.; custom sizes are also available according to conveyor chain specifications.

Number of Teeth: 8T, 10T, 12T, 15T, 20T, etc.

Pitch (P): Must match the chain pitch, such as 12.7 mm, 15.875 mm, 19.05 mm, etc.

Material: POM, PEEK, Nylon, etc.

Operating Temperature: Varies depending on the plastic material.

Wear Resistance: Depends on the material, load, speed, and lubrication conditions.

Customization: Custom manufacturing is available according to drawings, samples, or specific dimensions.

Common Classification

Common types include single-strand,double-strand,multi-strand,plate,hub,metal-insert,conveyor chain ,and roller chain plastic sprocket.

Manufacturing Process

Feida Machinery provides customized production according to different application requirements.The production flow is as follow:

Material Selection → Raw Material Preparation → Mold Manufacturing / Material Preparation → Injection Molding or CNC Machining → Tooth Profile Machining → Bore and Keyway Machining → Deburring → Dimensional Inspection → Chain Engagement Testing → Cleaning → Packaging → Shipping

In terms of Plastic sprocket gears Forming,we use injection molding for mass production and cnc machining for samples/prototpes.

Injection Molding: Plastic material is heated and melted before being injected into the mold cavity. Under controlled pressure and temperature, the material undergoes filling, packing, and cooling before the finished sprocket is removed from the mold.It is particularly suitable for mass production because it offers high production efficiency and good dimensional consistency.

CNC Machining: Allows manufacturers to produce bore holes, hubs, keyways, and tooth profiles directly according to CAD drawings, making it highly suitable for custom and non-standard plastic sprockets.

Main Advantages

Lightweight: Can weigh as little as one-fifth of a steel sprocket, reducing inertia.

Quiet operation: The damping properties of plastics significantly lower running noise.

Lubrication-free: Most plastics are self-lubricating, eliminating the need for grease – clean and maintenance-free.

Corrosion resistance: Resistant to moisture and most chemicals; do not rust.

Chain-friendly: The slight elasticity of plastic teeth reduces wear on the metal chain.

Electrical insulation: Non-conductive, no static issues.

Food-grade options: Many plastics meet FDA and USDA standards, suitable for food and pharmaceutical industries.

Customization Service

Feida Machinery provides custom manufacturing services according to customer drawings, samples, chain specifications, or specific application requirements.

Custom options include:

Number of teeth
Pitch
Outside diameter
Bore diameter
Keyway
Hub dimensions
Thickness
Material
Color
Metal inserts
Special tooth profiles

Applications

Food & packaging: Feida plastic sprocket gears are used in conveying equipment due to corrosion resistance, hygiene, and self-lubrication.

Water treatment: Used in sludge scrapers and similar equipment due to resistance to moisture and corrosion.

Conveying machinery: Widely used in light- and medium-duty conveyor lines.

Precision instruments: Leveraging light weight, low noise, and self-lubrication.

Automotive & aerospace: Used for lightweight components, such as engine peripherals and interior parts.

Medical & toys: Used in medical devices and toys due to compliance with hygiene standards.

Our Certificates

Established in 1988,Feida has been taking customer demand as guidance, providing efficient service,and high-quality products,so we have gained trust and recognition from our customers at home & abroad.

FAQ

Are you a manufacturer ?

We are a professional factory engaged in research and development, production, and sales of various sprocket gears and other mechanical transmission components,precision parts,and sheet metal parts.

What are your advantages?

Feida has a complete set of internationally advanced gear processing equipment,including precision hobbing machines,gear milling machines,gear shaping machines,grinders, gear testing centers, gear meshing instruments,CNC lathers,etc.Additionally,we have strong technical strength, advanced product manufacturing processes,and complete testing methods from raw materials to finished products.
