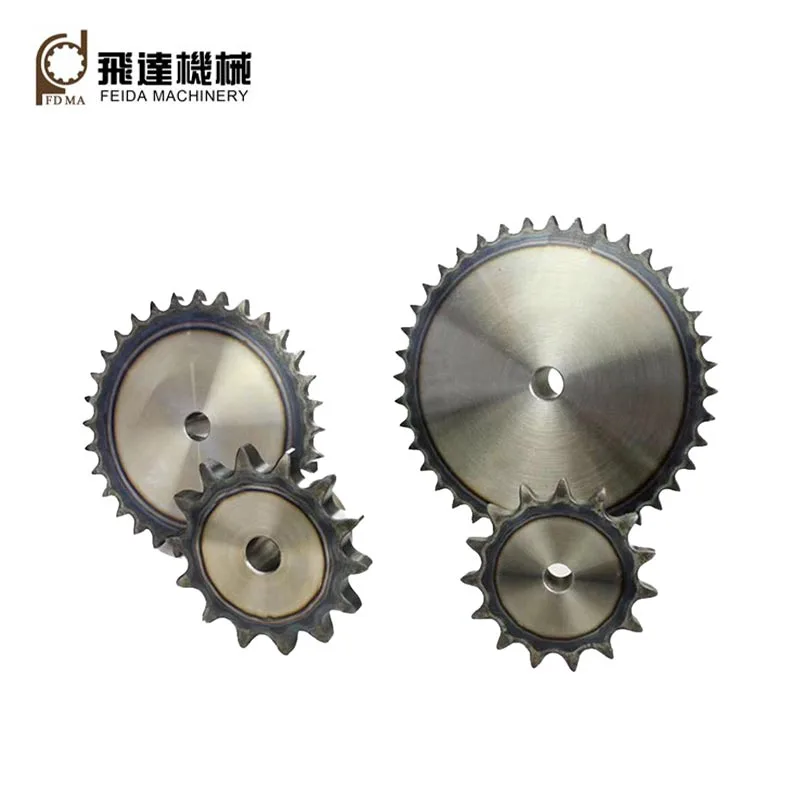

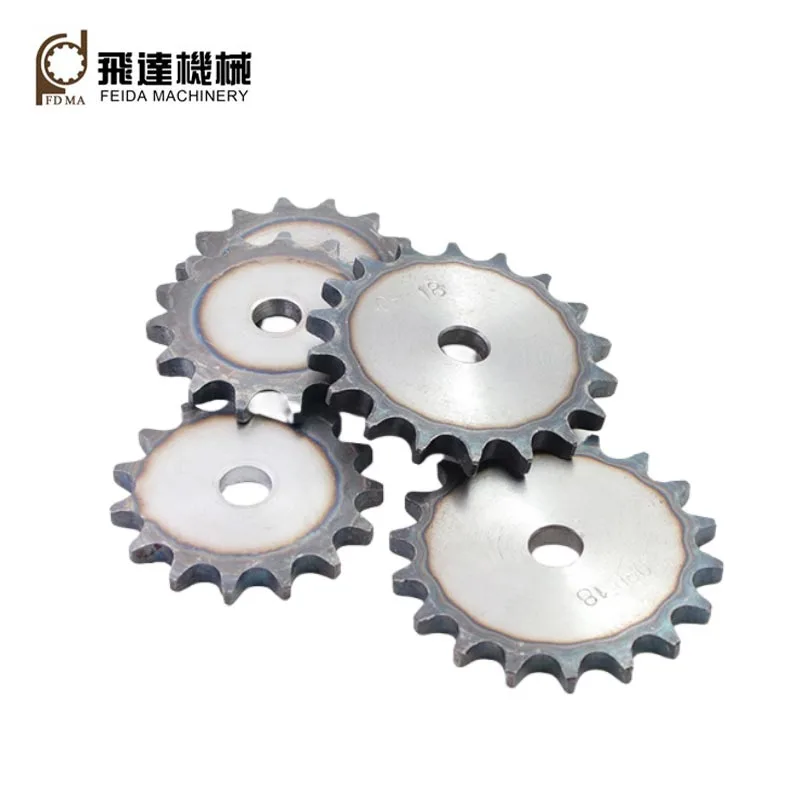

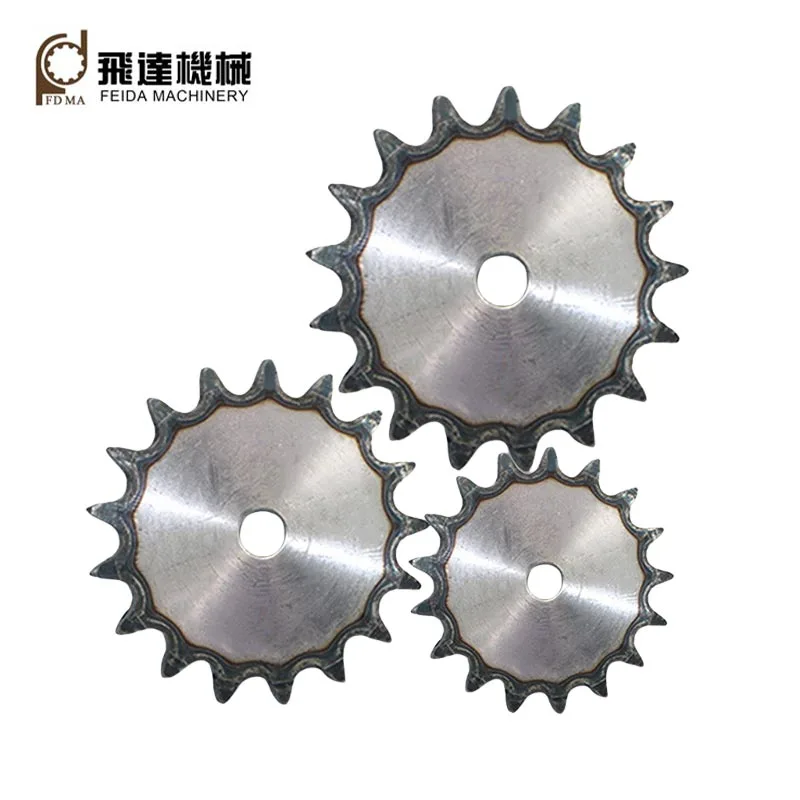

Metal Sprocket Gears

Made by Feida Machinery factory ,metal sprockets gears are simple mechanical wheels with teeth or small notches, which do not mesh directly with each other,but rotate and engage with the links of a chain or belt to achieve long-distance power transmission.

Common types

By number of rows: Are divided into single-strand ,double,and multi-strand sprockets.

By Structure: Are divided into type A(no hub),type B(single hub), and type C(double hub) sprockets.

Common Materials

The choice of materials depends on the different usage environments and performance requirements.Common materials include:

Alloy Steel: For applications involving heavy loads, high speeds, or demanding wear-resistance requirements, alloy steel is often preferred. Appropriate heat treatment can further improve the hardness, wear resistance, and service life of the sprocket teeth.

Stainless Steel: Stainless steel sprockets are commonly used in food processing, chemical, pharmaceutical, and other industries where moisture or corrosive environments are present.

Carbon Steel: Offers good strength, machinability, and cost-effectiveness, making it one of the most commonly used materials for industrial sprockets.

Manufacturing Process & Quality Control

Feida's advanced production process includes raw material selection,forging,turning,gear hobbing,heat treatment,inspection,and packaging.

During production, Feida pays attention to raw material selection, production process control, and product quality inspection, providing metal sprockets gears that meet industrial application requirements.

Can metal sprockets be customized？

They can be customized according to specific equipment and application requirements. Custom options include tooth count, pitch, bore size, keyway, hub dimensions, material, heat treatment, surface treatment, tooth profile, and dimensional tolerances. You can provide drawings, samples, or detailed specifications for custom manufacturing.

Applications

Agricultural and Construction Machinery

Agricultural equipment (tractors, harvesters), construction machinery (excavators, forklifts), road-building machinery, and forestry equipment.

Industrial Manufacturing and Mining

Mining machinery (crushers, hoists), metallurgical equipment, cement plants, petrochemicals, precision machine tools, textile machinery, and printing/packaging equipment.

Transportation and Logistics

Automobiles (engines, transmissions, and other core power-train components), motorcycles, aerospace, material handling systems, and automated production lines.

Food and Special Environments

Food processing (often using corrosion-resistant stainless steel), pharmaceuticals, chemical equipment, and water treatment.

Daily and Public Facilities

Escalators, multi-story parking garages, woodworking machinery, and instruments/meters.

FAQ

What about Installation and Maintenance Notes?

Alignment: Ensure the tooth slots of the driving and driven sprockets are in the same plane.

Chain tensioning: Keep the slack side on the bottom; adjust center distance or add a tensioner to prevent vibration.

Lubrication & cleaning: Regular lubrication and cleaning are necessary.

Simultaneous replacement: Replace sprockets and chain together to avoid accelerated wear.

What are differences between a gear and a sprocket?

Key differences are in the following table.
